INVIZx98

Next-Generation Digital Full-HD Pan-Tilt-Zoom Camera

The INVIZx98 from viZaar is a state-of-the-art digital pan-tilt-zoom camera featuring true Full HD resolution (1920 x 1080 pixels), engineered specifically for high-precision visual inspections of large components that demand powerful illumination, 360° visibility, and high-performance zoom capabilities. With a compact diameter of just Ø 98 mm, it enables high-resolution non-destructive testing (NDT) even in confined or hard-to-reach areas.

Crafted from Grade 5 titanium, a corrosion-resistant material commonly used in the aerospace industry,  the camera’s rugged housing ensures maximum durability while maintaining a lightweight design. Weighing only 1,900 grams, the INVIZx98 is the ideal solution for demanding industrial inspections where low weight and extreme precision are crucial.

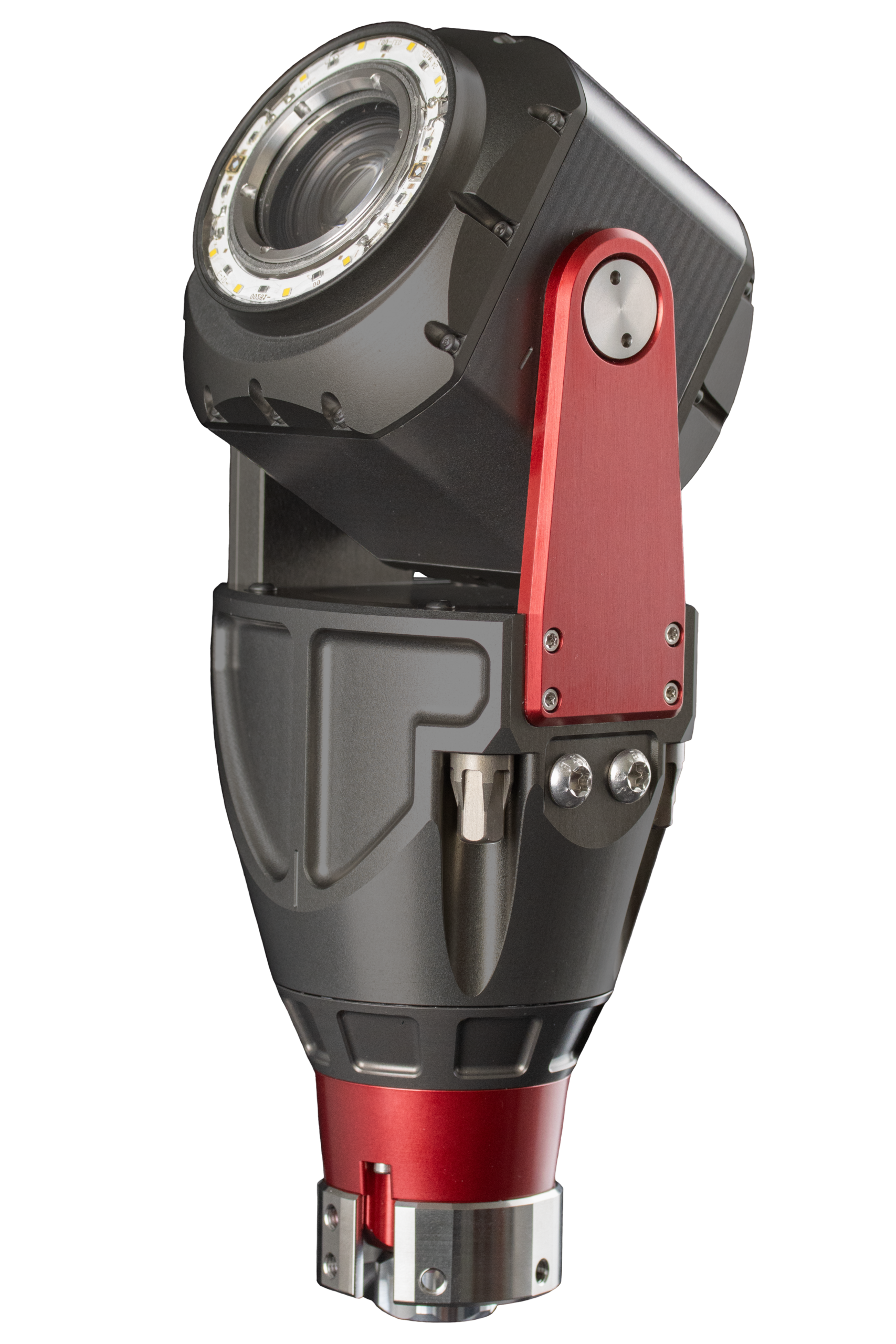

For applications where minimal weight and reduced surface contamination are critical, the INVIZx98 is also available in a hard-anodized aluminum version (INVIZx98 Al), providing a lightweight alternative without compromising performance.

The INVIZx98 at a glance

  • Corrosion-Resistant Housing made of Grade 5 Titanium or Hard-Anodized Aluminium with a Compact Ø 98 mm Diameter
  • Continuous 360° Rotation and Tilt Capability ± 165° with Speed Positioning
  • Uncompressed Full HD+ for lossless image quality and optical 10x zoom for detailed close-ups and prepared for your AI applications
  • Consistent Lightweight Construction with only 1900 g
  • Dimmable Wide-Angle LED for Optimum Illumination with up to 2000 lumens
  • Up to 8 Hours of Inspection Time with a Standard Professional-Grade Battery
  • Operating Temperature from -25 °C to +48 °C - can be extended up to +75 °C
1
2
3
4
INVIZx98
1

Uncompressed Full HD resolution of 1920 x 1080 pixels

2

Dimmable Wide-Angle LED with up to 2000 lumens

3

With a diameter of just ø 97.8 mm, all accessibility and robustness requirements are met.

4

Continuous 360° rotation and tilt function

Superior Image Quality

Full-HD without compromise

Unlock a new level of precision with the INVIZx98 pan-tilt inspection camera. Delivering uncompressed Full HD resolution (1920 × 1080 pixels), the INVIZx98 captures crystal-clear images with zero compromise. Its 10x optical zoom allows you to inspect the smallest details from a long distance, while the minimum focus distance of just 10 mm and exceptional light sensitivity of 0.125 Lux ensure high-quality imaging in dark or hard-to-reach areas.

A diagonal field of view of 68° in a 16:9 aspect ratio (32° vertical, 55° horizontal) offers outstanding situational awareness, and the one-touch white balance function simplifies accurate color calibration in every inspection scenario.

Detect defects, corrosion, and critical irregularities with unprecedented accuracy, thanks to the camera’s lossless data capture and the elimination of error-prone image scaling. Take your non-destructive testing (NDT) to the next level with the clarity and reliability only the INVIZx98 can provide.

New Era

The Path to Automation

With endless 360° rotation and a 330° tilt range (±165°), the INVIZx98 provides a comprehensive all-around view. The home position and other preset positions can be reached in under 2 seconds, enabling fast responses and saving valuable time during inspections.

Thanks to the 10x optical zoom and advanced 1/2.8″ CMOS Sony® IMX® sensor technology, users maintain full control over every detail. Features like position memory and customizable zero-point calibration enhance orientation inside vessels and support operators in repeated inspection tasks.

These capabilities streamline workflows and boost efficiency in complex inspection scenarios.

Powerful Illumination

Precision Lighting for Demanding Environments

A high-performance dual white-light LED system ensures optimal illumination, with almost continuously adjustable brightness and a total output of up to 2,000 lumens in Turbo Mode. Each LED ring can be controlled independently, allowing for customized lighting setups tailored to specific inspection needs.

By intentionally casting shadows, surface irregularities such as scratches, cracks, or indentations can be highlighted with high contrast. For cleanliness inspections, a 365 nm UV lighting option is also available upon request.

For specialized applications, the system can be expanded with an optional laser unit or a high-intensity LED boost module.

Broad Range of Applications

Unlimited Versatility

With a standard water resistance of up to 45 meters (4.5 bar), the INVIZx98 is perfectly suited for underwater and high-humidity environments. Its operating temperature range from –25°C to +48°C allows it to withstand demanding conditions, setting new standards across a wide range of inspection applications.

Large components that require intense illumination, 360° visibility, and powerful zoom benefit from its exceptional performance, just like tanks, reactors, and agitator vessels.

The INVIZx98 proves especially reliable in underwater operations, such as inspections of nuclear function groups, marine components, or other flooded environments, where absolute dependability is essential.

Innovative Control with the VUnit

The INVIZx98 is complemented by the cutting-edge VUnit documentation system, which offers an intuitive user interface designed for ease of use. Equipped with scroll wheels, joysticks, and direct-access buttons, it enables precise and efficient camera control during inspections.

With uncompromising Full HD+ resolution and an interface layout positioned outside the live inspection image, the VUnit ensures unobstructed visibility of every detail, allowing operators to focus fully on their inspection tasks.

Comprehensive Documentation and Data Management

Create seamless inspection reports with the integrated comment function and the display of technical data. The VUnit allows you to seamlessly evaluate and organize your recordings. With the HDMI output, you can easily present your results on an external monitor. The INVIZx98 in combination with the VUnit documentation unit offers you a powerful and future-proof full HD inspection system for the highest demands. Experience visual inspections on a new level – with the INVIZx98 from viZaar.

The INVIZx98 in Action

The INVIZx98 from viZaar is a state-of-the-art Full-HD pan-tilt-zoom camera that sets new standards in remote visual inspection. With its compact design and advanced capabilities, it enables precise and detailed inspections across a wide range of applications, including:

  • Inspection of large-volume components requiring enhanced illumination, 360° visibility, and zoom, such as tanks, boilers, shafts, and their internal structures

  • Examination of agitator vessels and components inside reactors

  • Underwater inspections of nuclear system components, ship structures, or other flooded environments

  • Specialized applications in the pharmaceutical, chemical, and food industries

Kontakt

Sie benötigen persönliche Beratung? Dann rufen Sie uns an unter 07432 98375-0 oder nutzen Sie unser Kontaktformular!

6 + 1 = ?

*Note: The titanium housing is highly resistant to most acids and alkalis. However, compounds containing fluorine may interact with the housing and possibly damage it. For detailed information on chemical compatibility, please contact viZaar or your local sales representative.
